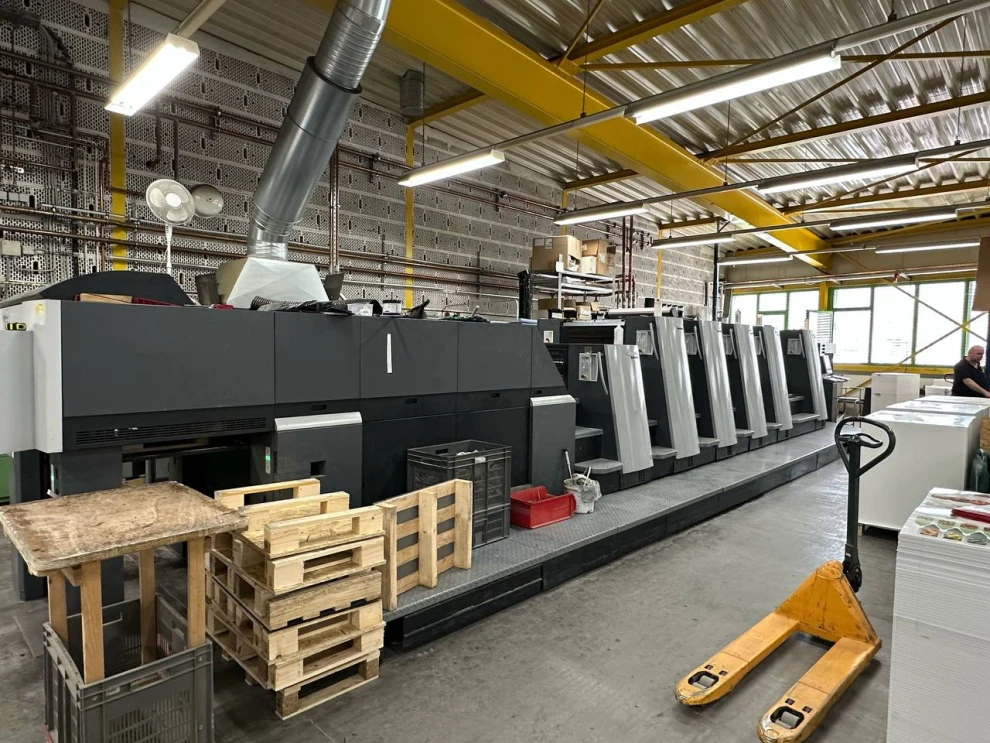

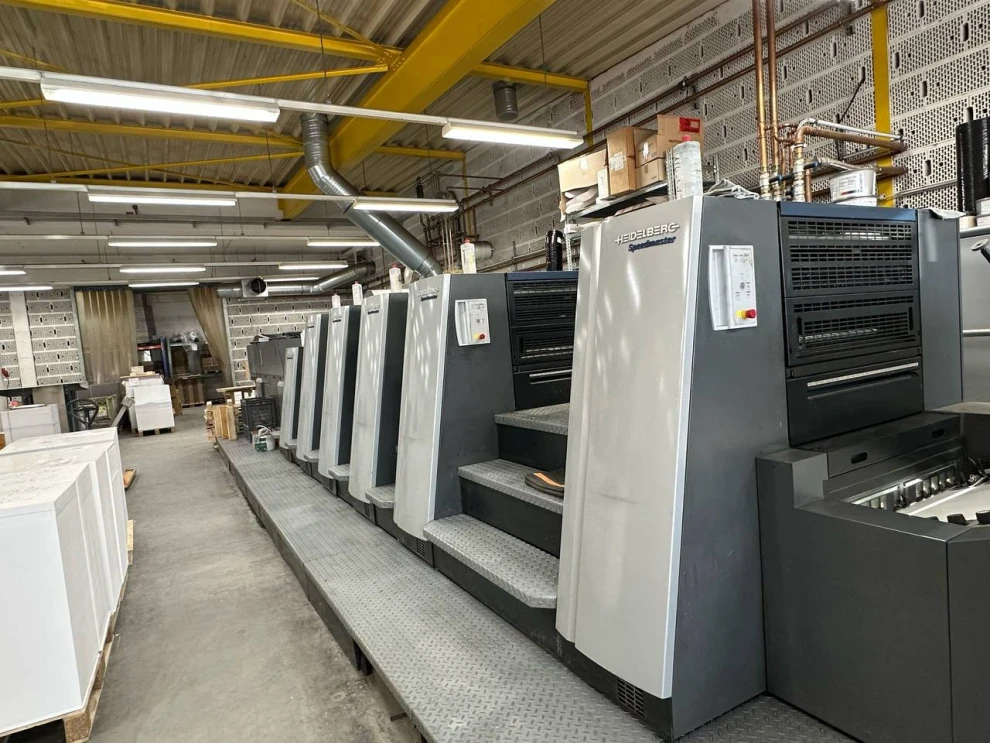

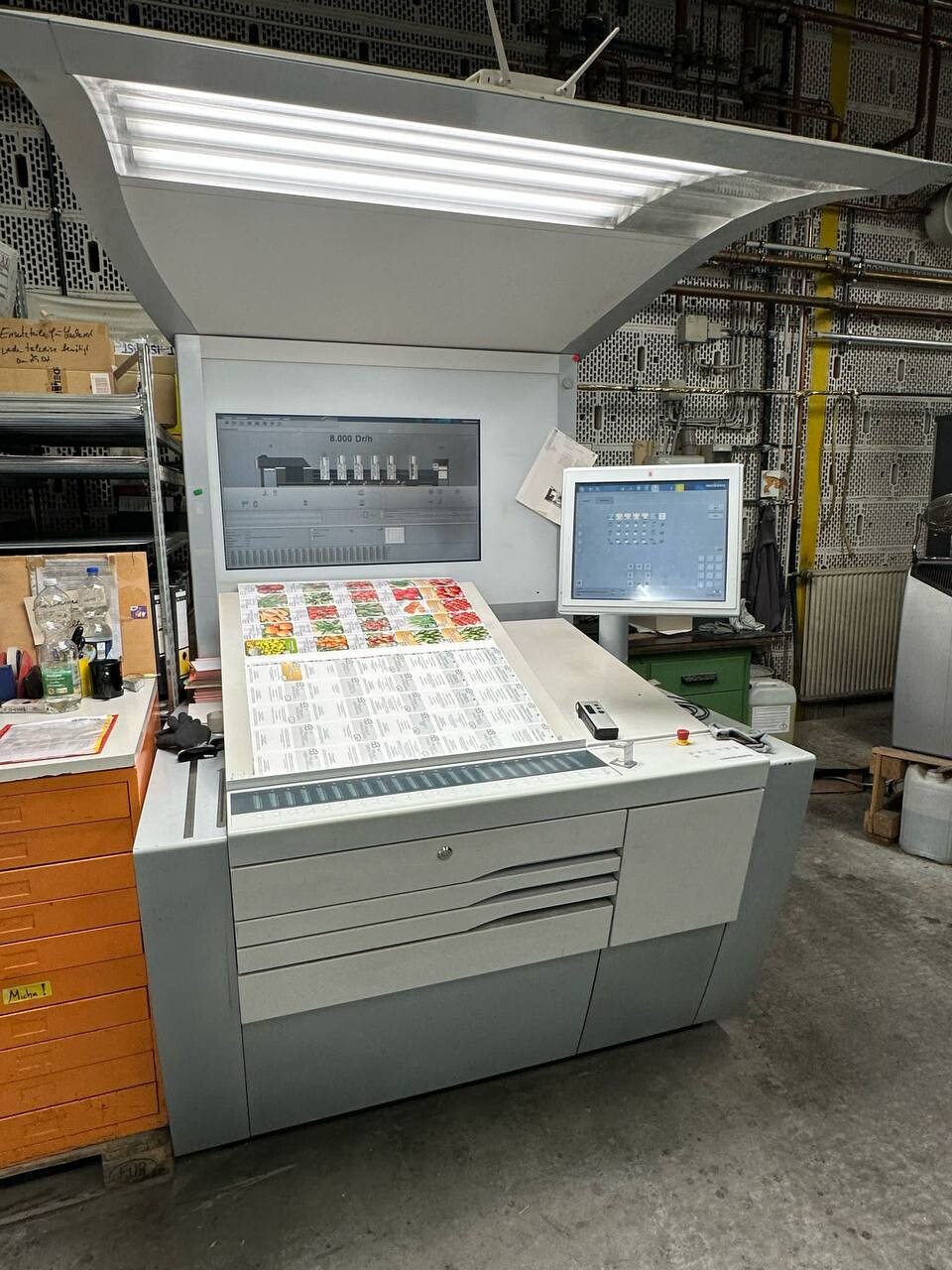

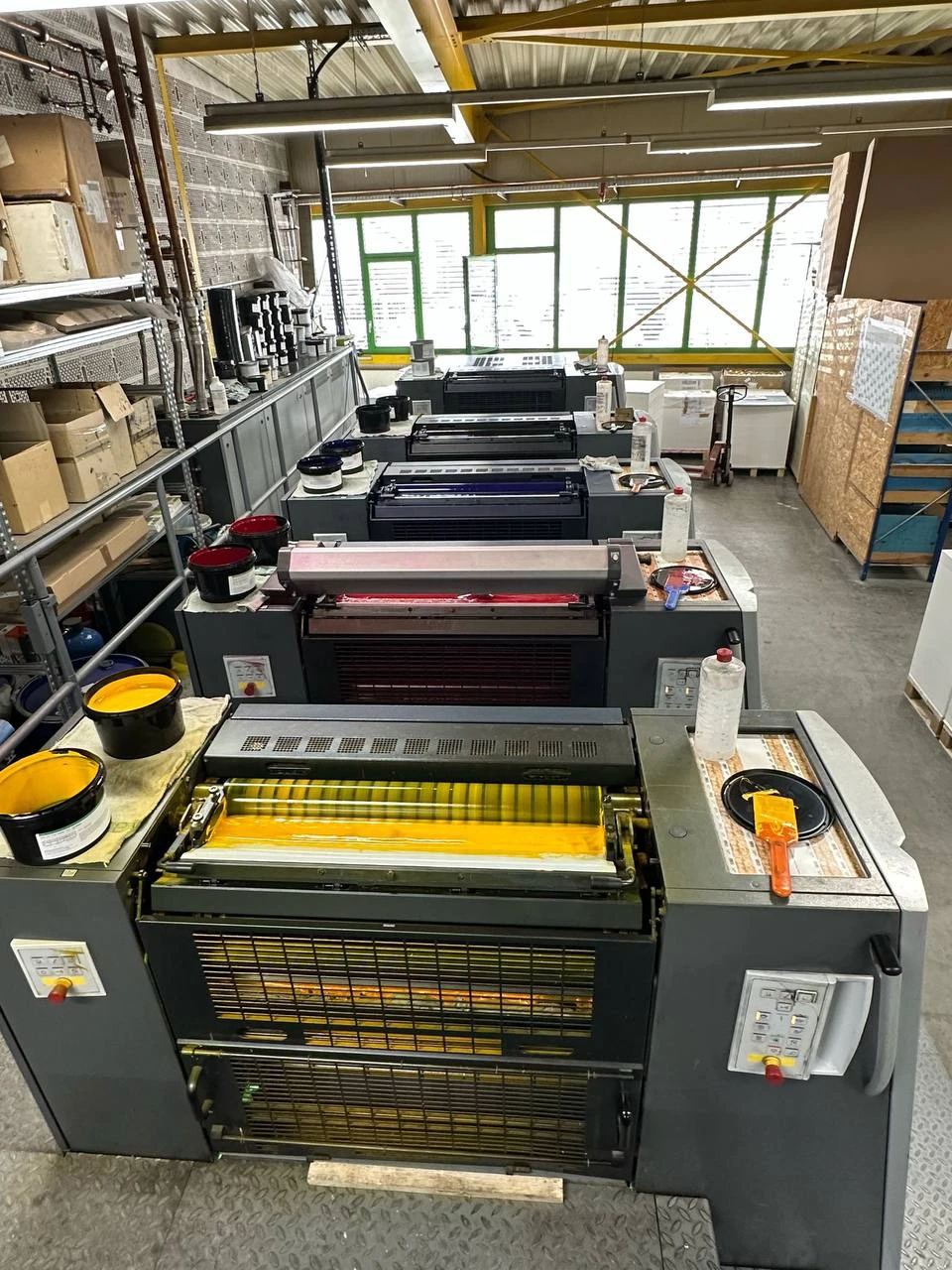

Пятикрасочная офсетная машина Heidelberg XL 75-5 PLC

Speedmaster XL 75 / XL 75 Anicolor 2 – Technical Specifications

Printing Stock

• Max. sheet size, F format: 605 × 750 mm (23.82 × 29.53 in)
• Max. sheet size, C format: 530 × 750 mm (20.87 × 29.53 in)
• Min. sheet size (straight printing): 280 × 350 mm (11.02 × 13.78 in)
• Min. sheet size (perfecting mode), F format: 340 × 350 mm (13.39 × 13.78 in)
• Min. sheet size (perfecting mode), C format: 300 × 350 mm (11.81 × 13.78 in)
• Max. print format, F format: 585 × 740 mm (23.03 × 29.13 in)
• Max. print format, C format: 510 × 740 mm (20.08 × 29.13 in)
• Thickness: 0.03 – 0.80 mm (0.0012 – 0.031 in)
• Gripper margin: 8 – 10 mm (0.31 – 0.39 in)

Maximum Print Output

• Standard for straight printing presses: 16,500 sph
• Option for straight printing machines: 18,000 sph
• Perfecting machines: 15,000 sph
• Anicolor: 15,000 sph

Plate Cylinder

• Cylinder undercut: 0.12 mm (0.005 in)
• Distance from lead edge of plate to lead edge of print, F format: 43 mm (1.69 in)
• Distance from lead edge of plate to lead edge of print, C format: 59.50 mm (2.34 in)
• Plate length × width, F format: 660 × 745 mm (25.98 × 29.33 in)
• Plate length × width, C format: 605 × 745 mm (23.82 × 29.33 in)
• Plate thickness: 0.30 mm (0.012 in)

Blanket Cylinder

• Blanket length × width (metal-barred): 700 × 772 mm (27.56 × 30.39 in)
• Blanket thickness: 1.95 mm (0.077 in)
• Packing sheet length × width: 620 × 750 mm (24.41 × 29.53 in)
• Cylinder undercut: 2.30 mm (0.091 in)

Coating Blanket Cylinder

• Coating blanket length × width (metal-barred): 700 × 772 mm (27.56 × 30.39 in)
• Coating plate length × width, F and C formats: 680 × 750 mm (26.77 × 29.53 in)
• Max. coating area: 585 × 740 mm (23.03 × 29.13 in)
• Cylinder undercut: 3.20 mm (0.126 in)
• Distance from lead edge of plate to lead edge of coating: 47.60 mm (1.874 in)

Pile Heights (incl. pile table and pile support plate)

• Preset Plus feeder: 1,120 mm (44.09 in)
• Preset Plus delivery: 1,120 mm (44.09 in)
• Elevated press: +550 mm (+21.65 in)

Sample Configuration (Basis: Speedmaster XL 75-5+L)

• Configuration: XL 75-5+L with Preset Plus feeder and Preset Plus delivery with two extension modules
• Number of printing units: 5
• Number of coating units: 1
• Length: 12.59 m (495.67 in)
• Width: 3.54 m (139.37 in)
• Height: 2.01 m (79.13 in)
• Height (Anicolor version): 2.43 m (95.67 in)
